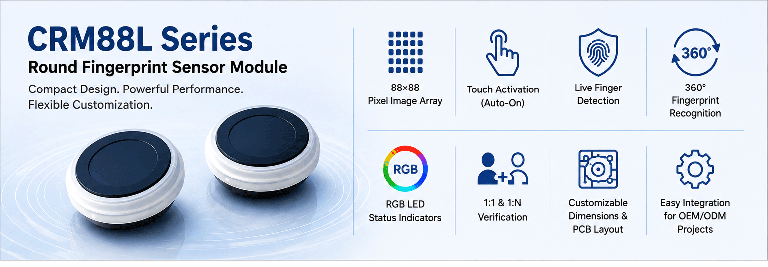

CRM88L-100 Embedded Round Fingerprint Module
The CRM88L-100 is a compact embedded round fingerprint module designed for smart locks, safes, and storage cabinets. It delivers fast and accurate fingerprint recognition with stable performance and supports live-finger detection for enhanced security. A built-in three-color LED provides clear status indiction.
Its compact size and easy integration make it ideal for cost-sensitive access control productsEmbedded Round Fingerprint Module

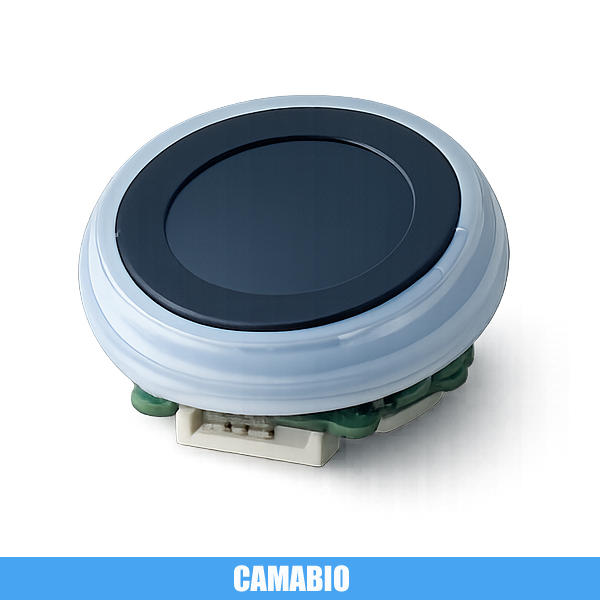

Embedded Round Fingerprint Module
Product Specification
| Item | Description |
| Fingerprint Sensor | CAMA Capacitive Fingerprint Sensor |
| Fingerprint Scan Area | R6.3mm |
| Fingerprint Image | 88pixel x 88pixel |
| Fingerprint Image Resolution | 508DPI |
| Fingerprint Template | 512bytes |
| Communication Interface | UART (3.3V TTL) |
| FRR | <0.1% |
| FAR | <0.001% |
| Module Speed | Identify time<400ms; Auto-on≤150ms |
| Fingerprint Capacity | 100Fingerprints |
| Working Current | <45mA |
| Standby Mode | <10uA |
| Power Supply | DC3.3V |
| Working Temperature | -20℃ – 55℃ |
| Working Humidity | 20% – 80% |

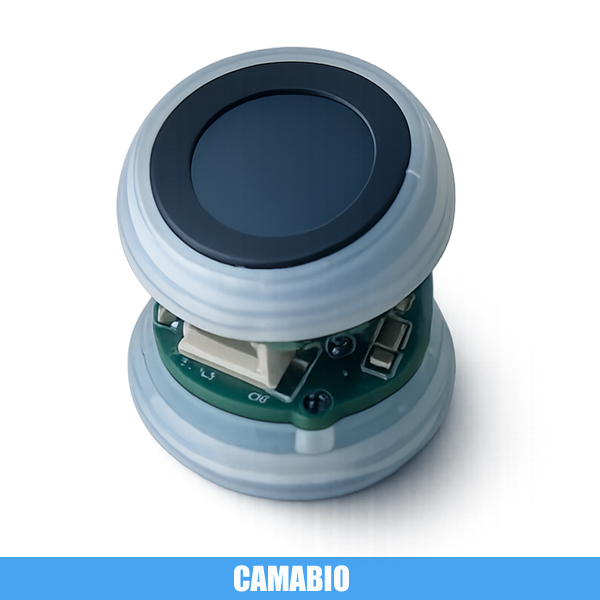

Embedded Round Fingerprint Module

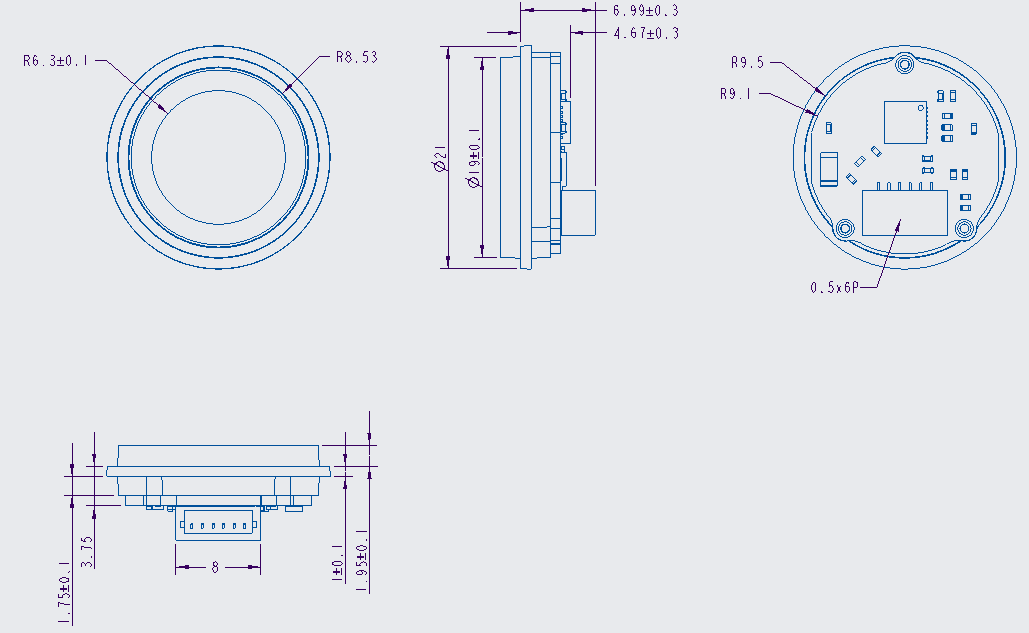

Product Size

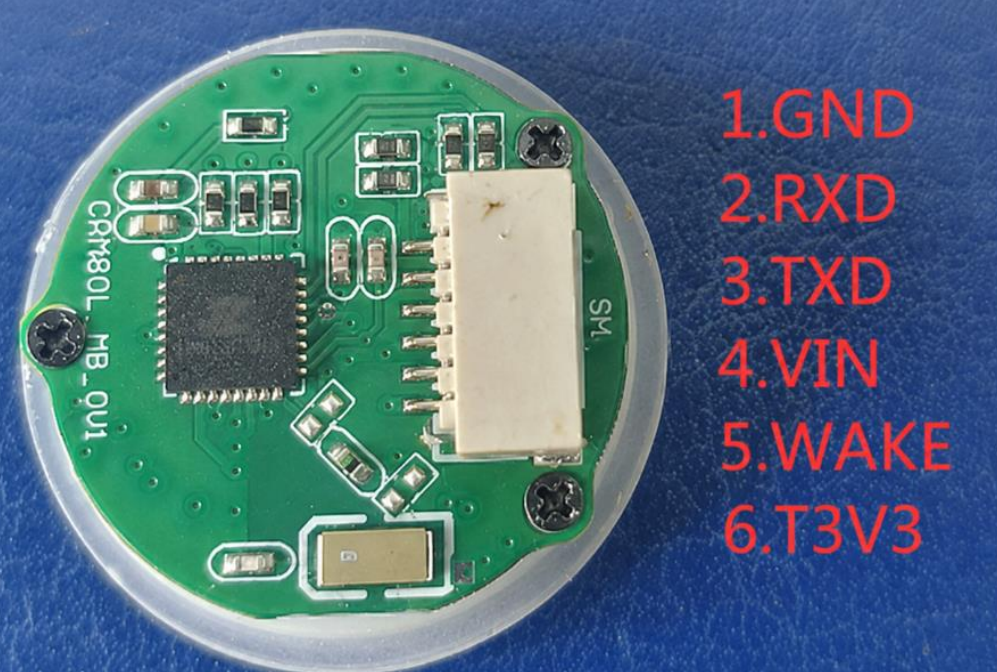

Interface Details
Interface Description
|
Item No. |
Item Name |
Description |
Note |
|
6 |
Touch_3V3 |
Touch Power 3.3V |
+3.3V |
|
5 |
Wake |
Touch Sensing Signal Output |
High Level Valid |
|
4 |
3V3 |
3.3V power of fingerprint module |
+3.3V |
|
3 |
TXD |
TXD send port |
|
|
2 |
RXD |
RXD send port |
|
|
1 |
GND |
Ground |
Note:
- Before initiated the module, both pin4 and pin6 should be powered.
- After the module initiated, you can cut off the pin4 3.3V (when there are no users use it)
- When there is a finger touch the sensor, the pin5 will output high level signal
- After your MCU detected high level signal, then your MCU can power pin4 3.3V on
- After the module into capture or identification mode, the pin6 still need to be powered
- When there is no finger on the sensor for a long time (time out), your MCU can turn pin4 off.
Technical Support
To support you electronic engineers to do developing works, CAMABIO will provide you following materials after you bought the product.
- User Manual of CAMA-CRM88L-100 ( Command Protocols Included)
- DEMO Software For Testing Purpose
- Module SDK
If you have any technical questions before you buy CRM88L-100 Embedded Round Fingerprint Module, you can contact camasales02@camabio.com for support.
Where you can use this product?
CRM88L-100 Embedded Round Fingerprint Module can be embedded into following products
- Fingerprint door lock system
- Biometric access control system
- Biometric time attendance system
- Fingerprint car starter
- Fingerprint safe box lock
- Buidling Security Control System
