Large capacity biometric fingerprint module
Large capacity biometric fingerprint module

SM2510K Large Capacity Biometric Fingerprint Module

SM2510K is a Large capacity biometric fingerprint module for secondary development. Support 9,998 fingerprint capacity,UART Interface,360 degree rotation verification,touch sensing activation.

Fingerprint Sensor: CAMABIO Optical Fingerprint Sensor
Fingerprint Capacity: 9998 Fingerprints
Image Resolution: 500 DPI
Fingerprint Template: 496 bytes
Fingerprint Scan Area: 18mm x 22mm
Auto-learning Function: Support
360 Degree Verification: Support
Communication Interface: UART

Category:

SM2510K Large Capacity Biometric Fingerprint Module
Large Capacity Biometric Fingerprint Module
SM2510K Large capacity biometric fingerprint module is special designed for time attendance and access control manufacturers who need large user capacity fingerprint. Powered by CAMABIO newest large user capacity fingerprint algorithm, CAMA-SM2510K Large capacity have a lot of features like fast speed,high accuracy,auto-learning, 360 degree rotation verification,etc.

Product Features

   # 9998 fingerprints capacity
   # 360 degree identification
   # Auto-learning function
   # Touch Sense Activation function
   # Fast identification speed
   # Support 1:1: and 1:N verification
   # FAR<0.001% FAR<0.1%
   # Anti-scratch glass prism

Product Specifications

Item Description
Product Name SM2510K Large capacity biometric fingerprint module
Fingerprint Sensor CAMA optical fingerprint sensor
Fingerprint Scan Area 18mm x 22mm
Fingerprint Image 242 pixel x 266 pixel
Fingerprint Image Resolution 500 DPI
Fingerprint Template 496 bytes
Communication Interface  UART (3.3V)
FRR <0.1%
FAR <0.001%
Identification Speed 1:1<0.45s; 1:N(9998 fingerprints) <1.5s
Fingerprint Capacity 9998 Fingerprints
Work current < 280mA
Standby current < 20μA
Power supply DC 3.3V
Working temperature -25℃- 60℃
Working humidity 20%-80%

Product Size

Optical Fingerprint Module Size

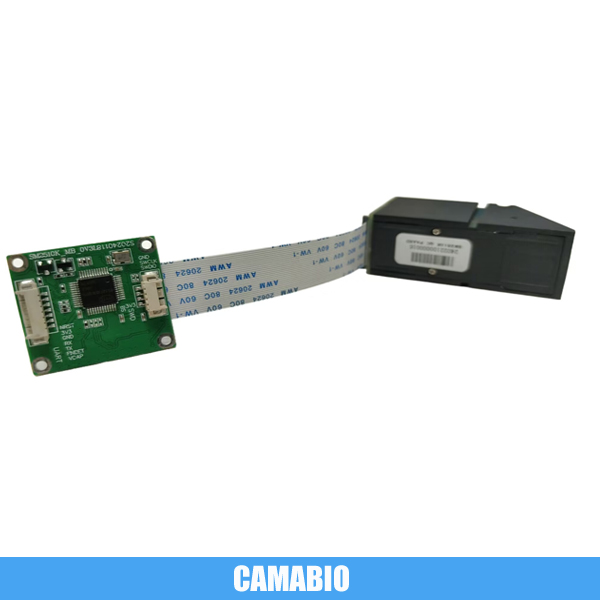

CAMA-SM2510K Large User Capacity Biometric Optical Fingerprint Module

Large capacity biometric fingerprint module

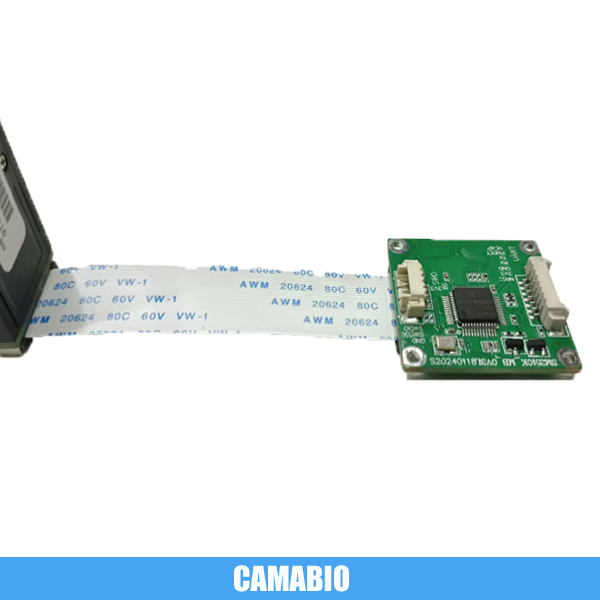

Main PCB Board Size

Technical Support

To support you electronic engineers to do developing works, CAMABIO will provide you following materials after you bought the product



  1. User Manual of CAMA-SM2510K ( Command Protocols Included)

  2. DEMO Software For Testing Purpose

  3. Sample Code For Micro controller Unit



If you have any technical questions before you buy SM2510K Large capacity biometric fingerprint module, you can contact camasales02@camabio.com for support.

Applications of SM2510K Large capacity biometric fingerprint module

SM2510K Large capacity biometric fingerprint module can be widely used for following products

Large capacity biometric fingerprint module

1. Fingerprint door lock system

2. Biometric access control system

3. Biometric time attendance system

4. Fingerprint car starter

5. Fingerprint safe box lock

6. Fingerprint car fleet management system
